Fabric to Film Lamination
Innovative Bonding Technology Redefining Softness and Strength

In the manufacturing of functional apparel, outdoor gear, medical protective products, and smart textiles, the lamination of films to textile substrates presents critical challenges: achieving high-strength bonding while preserving fabric softness, and withstanding repeated washing, friction, and environmental stress. This demands a bonding medium capable of micron-level penetration and dynamic deformation adaptability.

SINOHESIVE delivers invisible yet robust lamination solutions for a wide range of functional films—including waterproof/moisture-permeable membranes (PTFE/TPU), hot-melt adhesive films, electromagnetic shielding films, reflective films, and conductive films—and textile substrates such as woven fabrics, knitted fabrics, non-woven materials, and microfibers. Utilizing nano-level coating and low-temperature activation technologies, our PUR adhesives enable bonding without adhesive feel while maintaining fabric breathability, hand feel, and long-term functional durability.



Materials Compatibility

Functional Films

Waterproof/Moisture-Permeable Films (PTFE/TPU) | Hot-Melt Adhesive Films | Electromagnetic Shielding Films | Reflective Films | Conductive Films


Textile Substrates

Nylon Woven Fabrics | Polyester Knitted Fabrics | Microfiber Suede | Medical Non-Woven Fabrics | Aramid Flame-Retardant Fabrics


Core Advantages
Flexible Bonding Without Adhesive Feel

An ultra-thin adhesive layer (0.02–0.1 mm) deeply penetrates fiber interstices, achieving peel strength > 6 N/cm and improving bending fatigue resistance by 200%—eliminating adhesive stiffening and fabric clumping.


Extreme Wash Resistance

Withstands 50 industrial wash cycles (ISO 6330) and immersion in 60°C soap solution; bond strength attenuation remains below 8% with no film delamination or leakage.


Industrial-Grade Safety and Sustainability

Zero solvent residue; complies with OEKO-TEX® Standard 100 Class I for infant contact; VOC emissions < 5 μg/g (GB/T 18883).

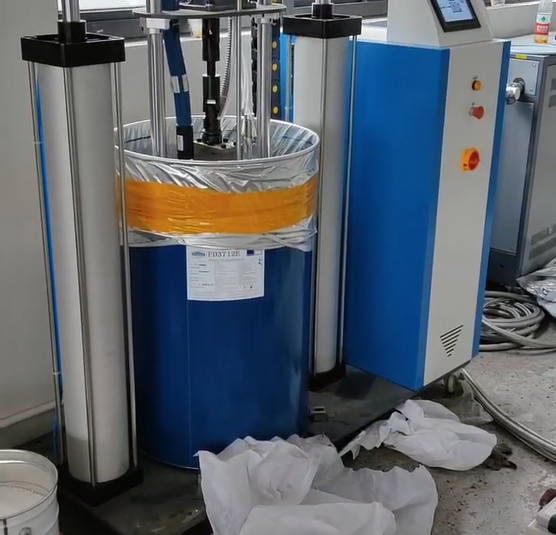

Video
Parameter
Application
Type
Viscosity [mPas] /
Temperature [°C]
Processing
Temperature [°C]
Open Time
TECHNICAL DATA SHEET (PDF)
SINOHESIVE® FC3308

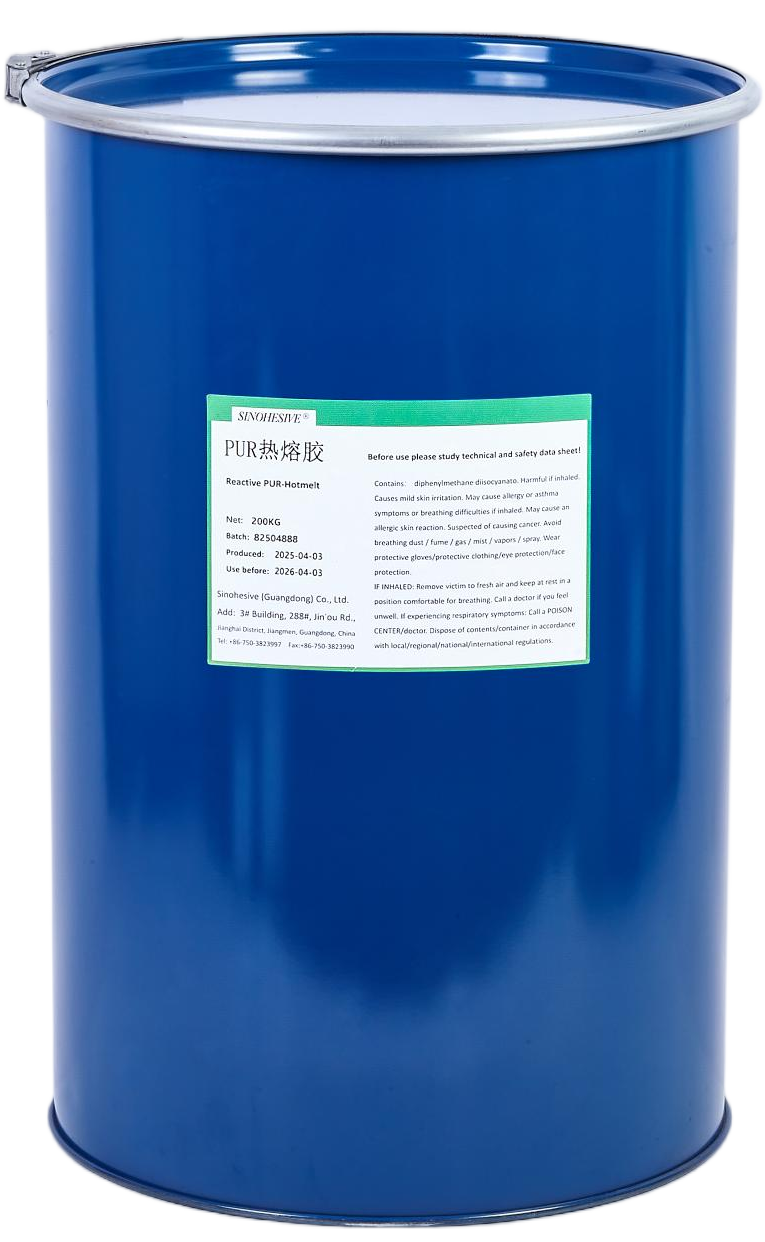

PUR Hot Melt Adhesive
5800 - 9200 / 80
85 - 110
< 30 min
SINOHESIVE® FD3762
PUR Hot Melt Adhesive
5500 - 8500 / 80
80 - 100
< 30 min
SINOHESIVE® FC331T
PUR Hot Melt Adhesive
70000 - 11000 / 80
75 - 95
< 30 min
