Full Coating Lamination
Full Coating Lamination Technology for Inflatable Boats and Sleeping Bags

In the manufacturing of inflatable boats and sleeping bags, full-surface coating lamination technology is essential to achieve an optimal balance of structural integrity, weather resistance, and lightweight flexibility.

SINOHESIVE delivers advanced full coating lamination solutions that ensure complete and uniform adhesion of functional films—such as waterproof TPU, PVC, or PE-based membranes—to textile substrates including polyester woven fabrics, nylon ripstop materials, and knitted liners. This process significantly enhances product durability, airtightness, and resistance to environmental stressors including UV radiation, saltwater corrosion, and repeated folding.


Materials and Applications

Functional Films

Waterproof and Moisture-Barrier Films (TPU, PVC, PE) | UV-Resistant and Anti-Aging Films | High-Frequency Weldable Films


Textile Substrates

Nylon Ripstop Fabrics | Polyester Woven and Knitted Fabrics | Polyester Microfiber and Non-Woven Materials | Aramid or Fiberglass-Reinforced Composites


Core Advantages
Seamless and Airtight Bonding

The full coating process guarantees 100% film coverage, preventing air or moisture leakage—critical for inflatable boats and sleeping bags requiring complete airtightness.



Exceptional Durability Under Dynamic Stress

Withstands repeated inflation/deflation, folding, and abrasion while maintaining bond strength even after 10,000+ fatigue cycles (ASTM D2594).


Eco-Friendly and Safe Composition

Solvent-free formulation; certified by OEKO-TEX® and compliant with REACH and RoHS environmental and safety standards.

Video
Parameter
Application
Type
Viscosity [mPas] /
Temperature [°C]
Processing
Temperature [°C]
Open Time
TECHNICAL DATA SHEET (PDF)

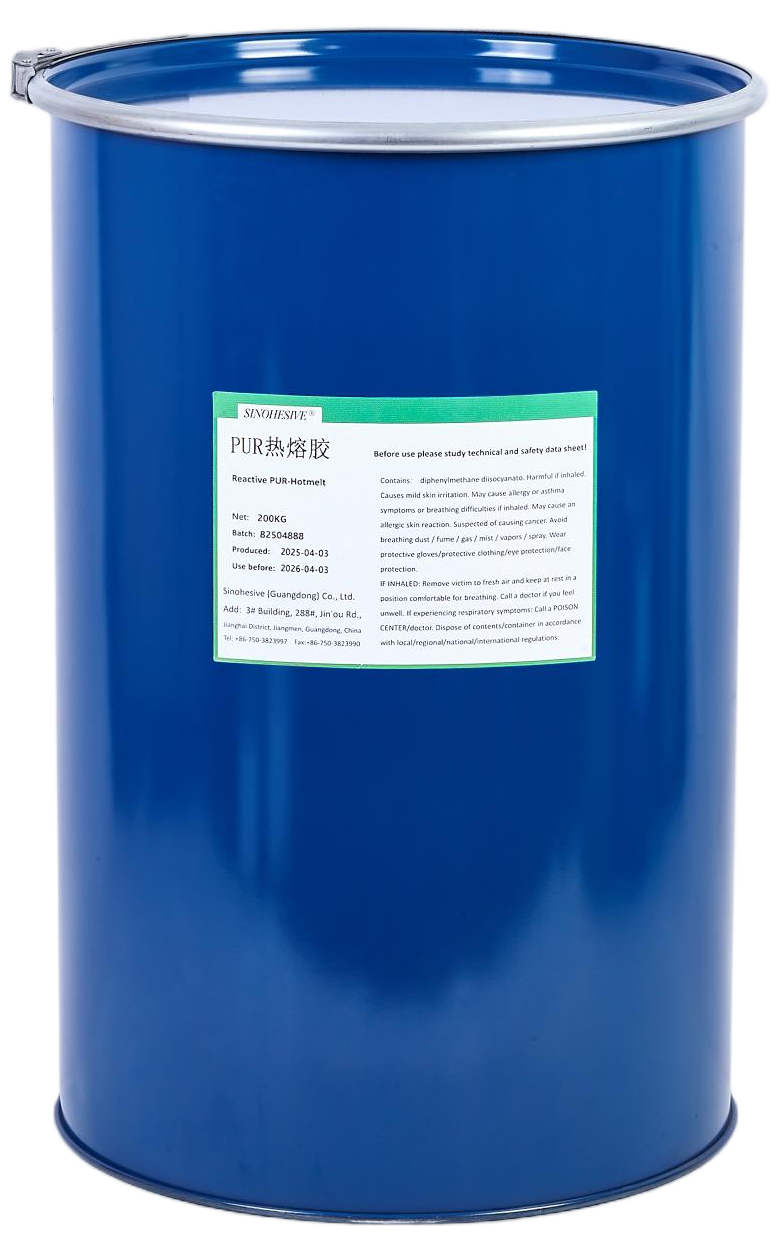

SINOHESIVE® FC3318
PUR Hot Melt Adhesive
3300 - 7700 / 130
120 - 130
< 5 min
SINOHESIVE® FG3210
PUR Hot Melt Adhesive
5000 - 9000 / 120
100 - 130
< 5 min
