Automotive Headliner Assembly PUR Adhesive

Automotive Headliner Assembly Lamination

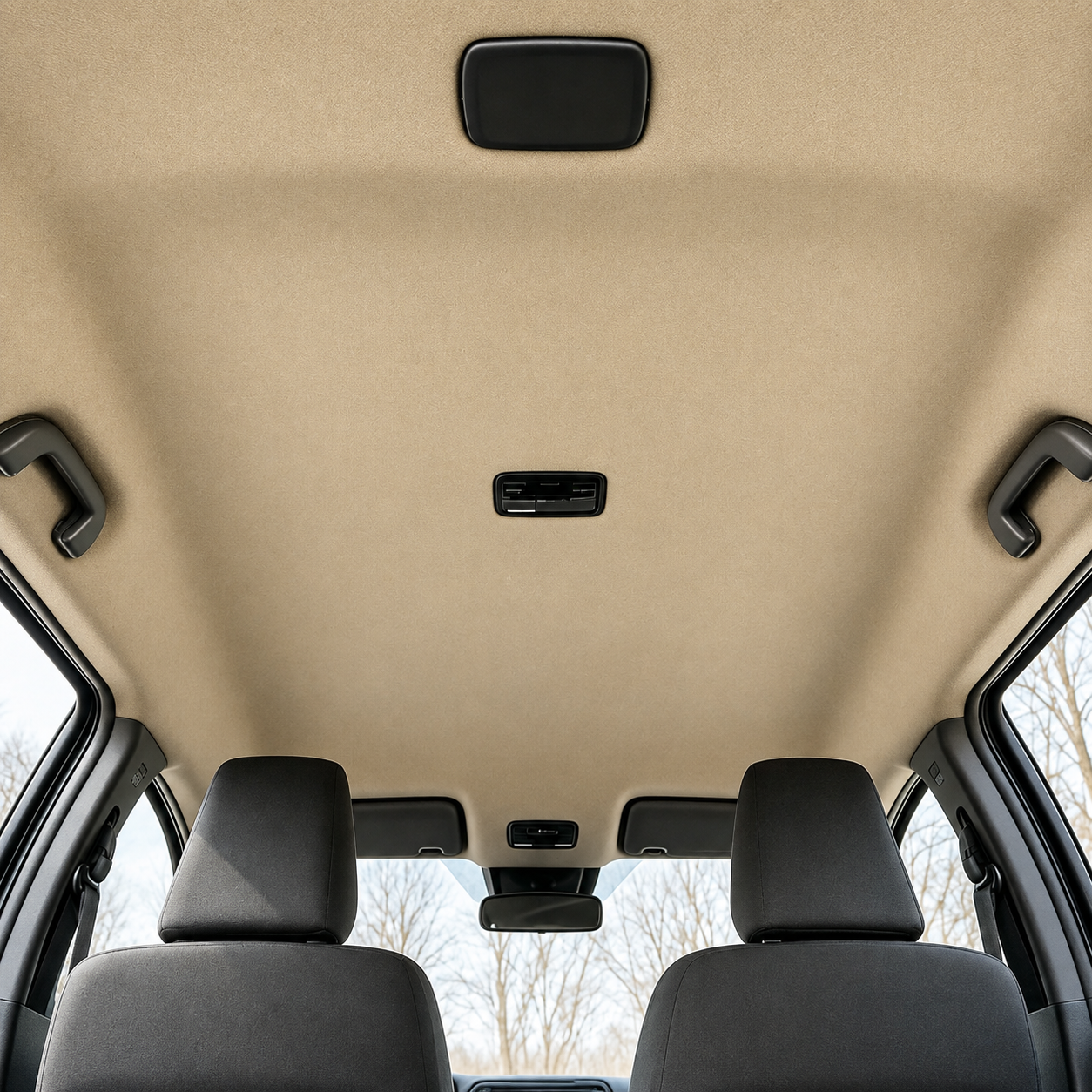

Automotive headliner systems combine lightweight boards, foam, textile fabrics and decorative surface materials. During vehicle use, these assemblies are exposed to high cabin temperatures, low-temperature conditions, humidity, UV exposure and continuous vibration. Inadequate bonding can result in fabric lifting, foam separation, edge curling, blistering or long-term delamination.

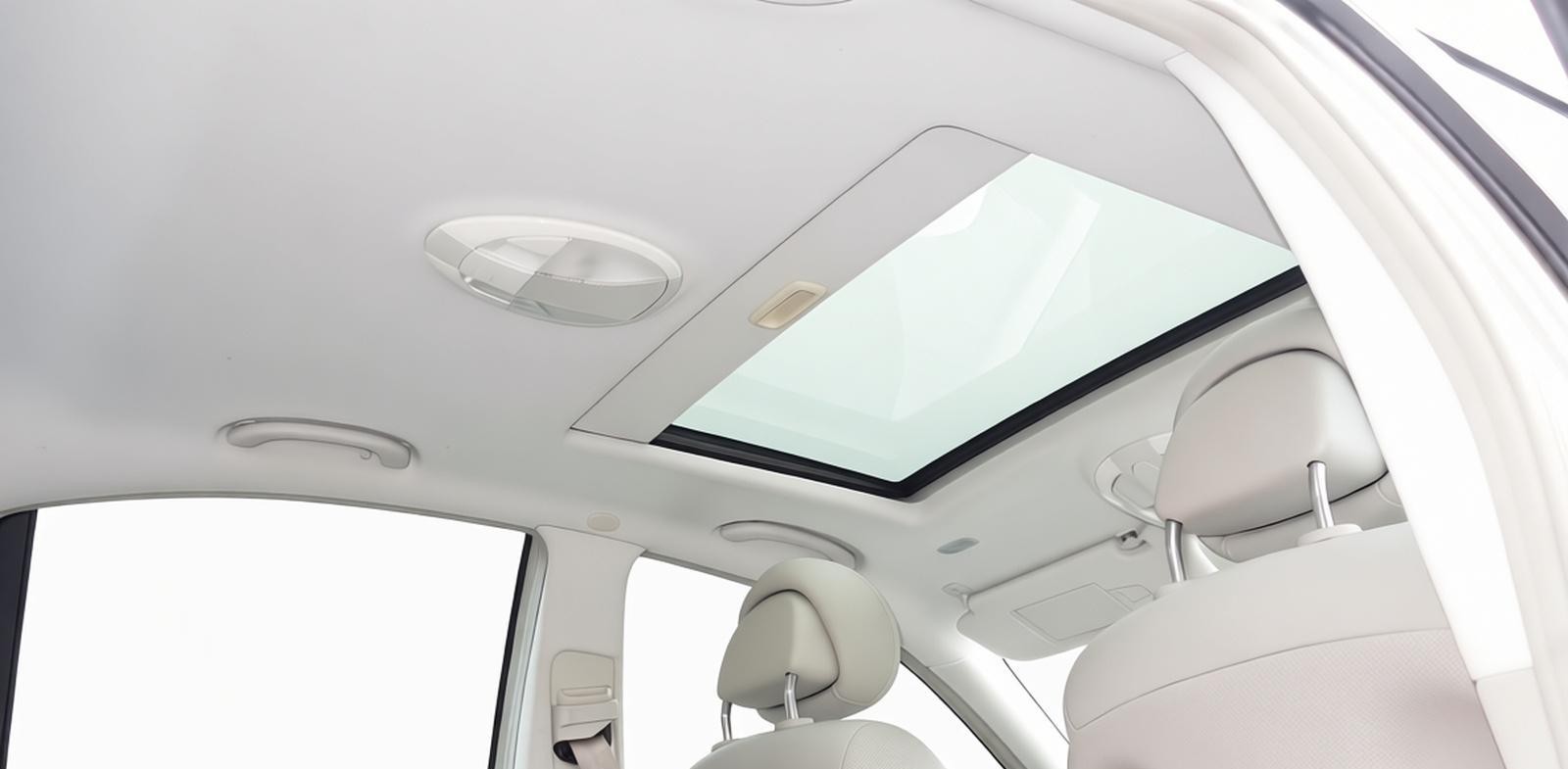

SINOHESIVE® PUR hot melt adhesives are designed for automotive headliner assembly, headliner fabric lamination and panoramic sunshade lamination. The adhesives provide fast initial tack for stable positioning, followed by moisture-curing crosslinking for durable bond strength, heat resistance and long-term reliability. They are suitable for automated and manual lamination processes, including full-surface coating, roll coating and high-coat-weight re-lamination.

Materials

Headliner Substrates

Fiberglass Board ｜ PP Board ｜ ABS Plastic Substrate ｜ Metal Frame

Surface and Cushioning Materials

Knitted Fabric ｜ Nonwoven Fabric ｜ Polyester Sunshade Fabric ｜ PU Foam ｜ Leather

Compatible with Multi-Layer Structures

The adhesive system supports bonding between common automotive headliner materials, including fiberglass boards, PP/ABS substrates, fabrics, foam, leather and metal components. It is suitable for lightweight multi-layer interior structures.

Heat, Cold and Aging Resistance

After moisture curing, the PUR adhesive forms a durable crosslinked bond layer with good heat stability and flexibility. It helps headliner and sunshade assemblies withstand temperature cycling, summer heat exposure and long-term vehicle use.

Low-Odor, Solvent-Free Technology

SINOHESIVE® PUR hot melt adhesives are 100% solids and solvent-free. They are suitable for automotive interior applications that require lower odor, cleaner processing and controlled VOC performance.

Parameter

Application

Type

Viscosity [mPas] /
Temperature [°C]

Processing
Temperature [°C]

Open Time

TECHNICAL DATA SHEET (PDF)

SINOHESIVE® QZ9226

PUR Hot Melt Adhesive

8000 -13000 mPa.s @130℃

130 - 160℃

30s-50s

SINOHESIVE® FC3318

PUR Hot Melt Adhesive

3300 - 7700 mPa.s @130℃

120 -140℃

>5min

SINOHESIVE® FN3108

PUR Hot Melt Adhesive

7900 -10500 mPa.s @90℃

95 -110℃

20min
